Reflectors and flow tubes, filters for laser cavity

ARD Optics offers a wide range of flow tubes and reflectors for lasers.

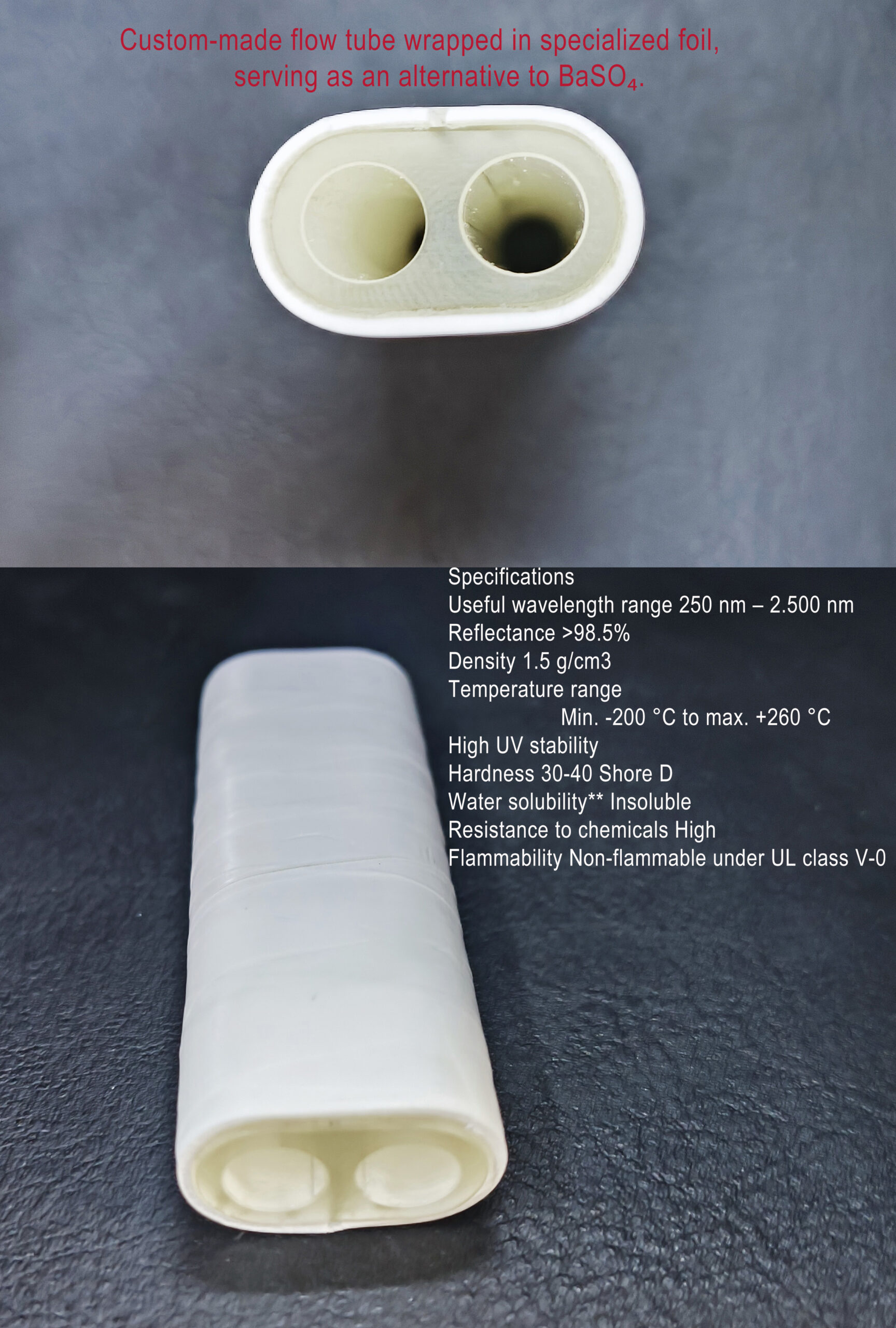

Single and Multi-Hole Cavity Filters and Laser Flow Tubes

Our company offers standard and specific laser flow tubes which are used in lasers with flashlamp pumped with a coolant. At the same time, flow tubes protect laser elements from undesired UV radiation by absorbing it, as well as radiation from the side of the rod, thereby enhancing the efficiency of the laser. We manufacture laser monoblocs from the following materials:

  • Pyrex Glass
  • Borofloat 33
  • Fused Silica
  • Cerium Doped Fused Silica
  • Samarium Doped Glass S7005 (5%Sm), S7010 (10%Sm)

The materials are listed in accordance with their cost starting from the cheapest option.

Our specialists carry out all the stages of processing: cutting, drilling, grinding and polishing, keeping the precise parallelism of the holes and other tolerances.

Sizes: Inner Diameter: 2-40 mm,+/-0.05-0.1mm

Length: 10-130mm, +/-0.05-0.1mm

Parallelity of Holes: 0.05-0.1mm,

The laser flow tubes are designed and manufactured upon the customer’s request.
